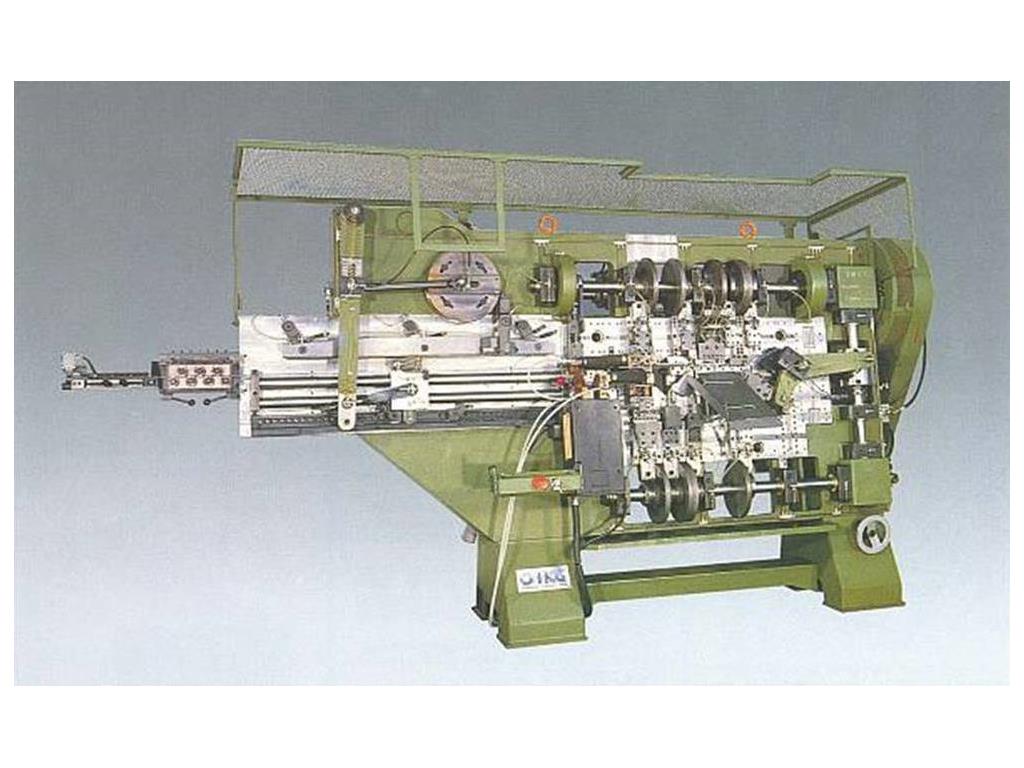

PGU1200 Mechanical Wire Bender

Videos

Description

Mechanical Wire Bending Machine , Mechanical Wire Forming Machine

this multislide forming machine is provided with a wide forming area suitable to meet the most challenging demands. The availability of up to 18 bending slides, 6 rear motions and a wide range of options like for example: 18 ton press; welding, threading, chamfering and punching units; extra feeder; numerical controlled feeder allow this model to satisfy the most demanding requirements.
The famous reliability of OMCG machines is assured by the use of the highest quality components and materials, but above all, by our customers operating them efficently for over 40 years.

APPLICATION EXAMPLES:

peg boards
gasoline tank straps
OT clamps
torsion bars

Mechanical feeding from 0 to		1200 mm (47 in)
Wire diameter		8 mm (0.3 in)
Strip width		25 mm (1 in)
Strip thickness		3 mm (0.12 in)
